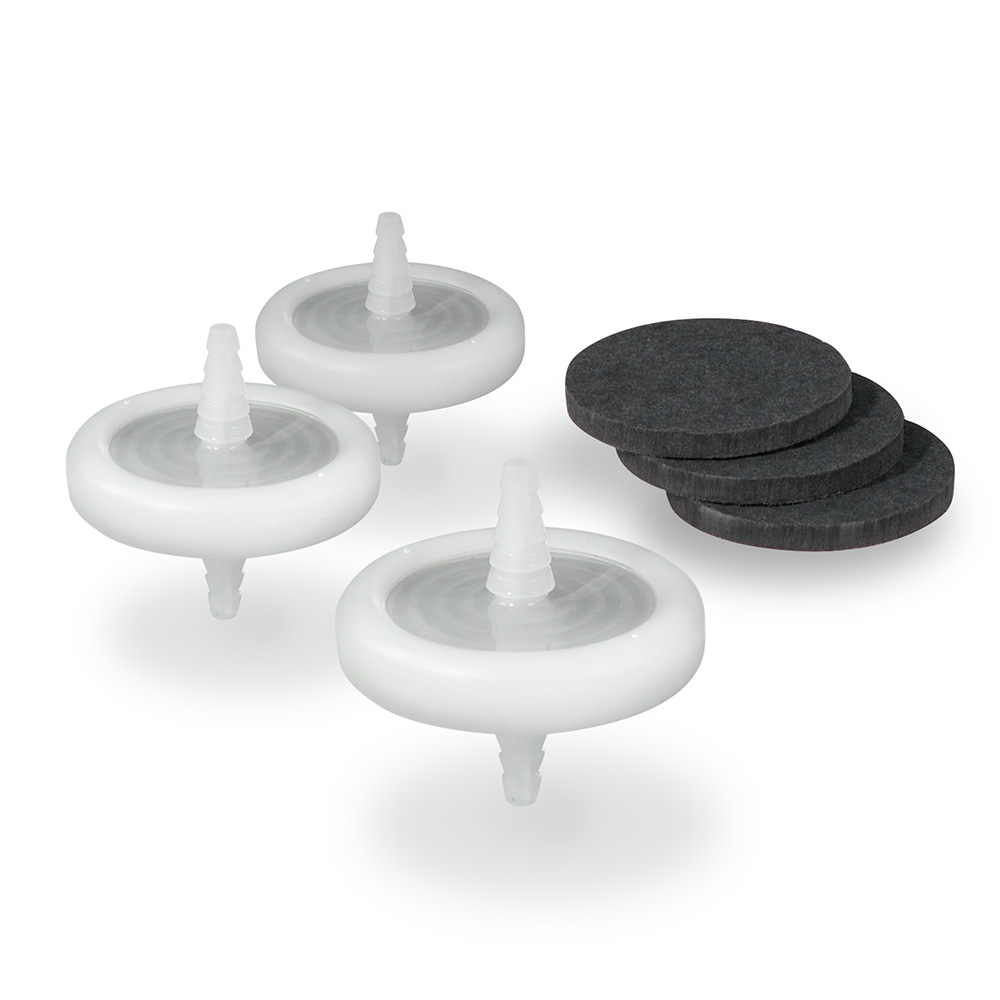

BECO MiniCap ACF disposable filter units with BECO CARBON activated carbon depth filter sheets are ready-to-use for the filtration of small volumes for laboratory applications, scale-up trials and sample preparation.
The depth filter sheets of BECO MiniCap ACF disposable filters have a high adsorptive capacity due to the use of immobilized activated carbon and are used for decolorization as well as for the removal of undesired by-products or for taste and odor correction.
Applications:
Industries:
您的搜索 "" 不能匹配到任何文档或产品。
| Order number | BECO MiniCap ACF Range |
| F071C300 | BECO MiniCap ACF 07.10 Kit* |
| F002C300 | BECO MiniCap ACF 02 Kit* |
| F003C300 | BECO MiniCap ACF 03 Kit* |
| F100C300 | BECO MiniCap ACF-Selection Kit includes:
|
| Effective filter area | 3.3 in² (21.2 cm²) |
| Diameter of the filtration unit | 2.9 in (74 mm) |
| Housing | Polypropylene according to FDA CFR § 177.1520 |
| Connections (filtrate inlet and outlet) | Hose connections 0.24 – 0.47 in (6 – 12 mm) in diameter |
| Max. inlet and differential pressure | 44 psi (300 kPa/3 bar) at 77 °F (25 °C) |
| Filling volume | 0.44 fl oz (13 ml) |
| Dead volume after purging with compressed air 4.4 psi (30 kPa/300 mbar) | 0.17 fl oz (5 ml) |
| Reference values for the flow capacity | 0.08 – 0.14 gal/h (85 – 145 gfd) 5 – 8 ml/min (150 – 250 l/m²/h) |
| Reference values for filtration volume | 0.05 – 2.6 gal (0.2 – 10 liter) |
| Type | Article number of depth filter |
Ash content % |
Bursting strength wet % psi (kpa) |
Water throughput at Δ p = 14.5 psi gpm/ft² (Δ p = 100 kPa* l/m²/min) |
Endotoxin content (EU/ml**) |
Activated carbon content (g/m²) |
| ACF 07.10 | 19607 | 15 | > 11.6 (80) | 34.7 (1415) | - | 420 |
| ACF 02 | 19602 | 2.5 | > 11.6 (80) | 6.75 (275) | < 0.125 | 1000 |
| ACF 03 | 19603 | 5 | > 11.6 (80) | 7.4 (300) | < 0.125 | 1000 |
* 100 kPa = 1 bar |
||||||
